Digital Manufacturing & Simulation

By creating and verifying various scenarios for producing products in the virtual working space (computer), you can assess and analyze possible problems that can occur in actual production, so that the optimal production condition can be resolved and the set up time can be reduced.

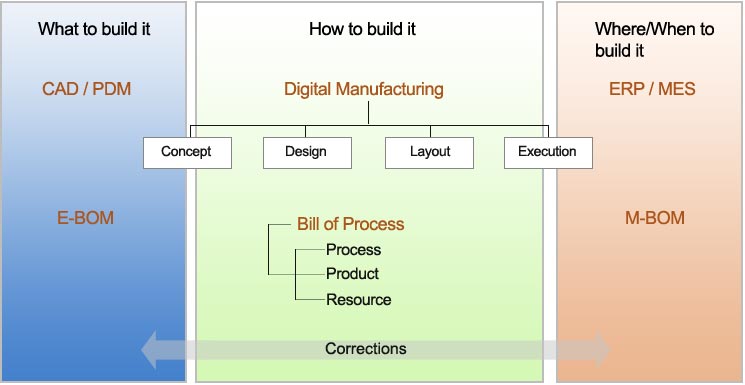

What to build it, How to build it, Where/when to build it

Digital manufacturing area

  • Digital manufacturing area
  • - Defining the process of productions. (Pert Chart, Gantt Chart used.)
  • - Define Product, Resource in the process. (Cost Estimate & Line Balancing)
  • - Creating simulation model and verifying production plans. / Simulation (deriving alternatives.)
  • Detailed process verification
  • - Set up the detailed plan for verified production processes based on the unit process. (Pert Chart, Gantt Chart used.)
  • - Using the 3D Data, verify the product assembly procedures with neighboring devices, tools, robots and humans.
  • - Apply the verified information once again to the production plan verification system (play the role of sub system for verification.)
  • On-site connection verification
  • - Assign electrical/air pressure or hydraulic pressure operation logics.
  • - Connect the program running in the on-site PLC CPU to the 3D Data for automation logic verification.
  • - Supports connection between the five major makers providing OPC communication and other makers' PLC and CAD data.
  • Simulation
  • Quest (Production simulation)

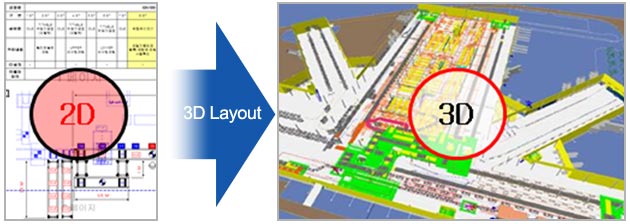

    Production simulation

    Main functions

    • - Unit production ability measurement/analysis.
    • - Production plan, inventory policy establishment.
    • - Bottleneck assessment, Layout operation policy establishment.
    • - Various performance measurement.

    Expected outcomes

    • - Production line optimization.
    • - Reduction of investment to machinery and man power.
    • - Productivity improvement.
    • - Speedy decision making /reduced preparation time for manufacturing.

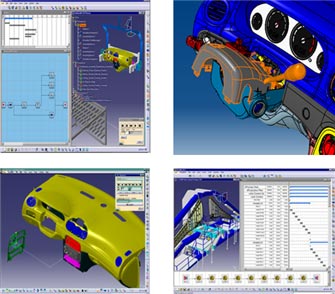

Assembly Process Simulation (Process Validation)

Assembly Process Simulation (Process Validation)

Main functions

  • - Review assembly feasibility.
  • - Review workability.
  • - Supports for process plan and evaluation verification.
  • - Mechanical operation verification of machines.
  • - Checking interference and collisions.
  • - Verification of assembly operation process and routes.
  • - Provide pert chart to check the order of processes.
  • - Provide Gantt chart to check the process time.

Expected outcome

  • - Reduce the automobile development time.
  • - Visualization of the assembly manufacturing system.
  • - Early establishment of the plan for works at the manufacturing system.
  • - Supports for integrated verification of work cell in conjunction with robotics, humans.

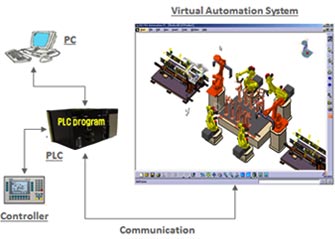

Virtual Integration(PLC Simulation)

Main functions

  • - Electrical signal in/out works on the 3D data.
  • - Create the virtual PLC Code. (Ladder, SFC, FBD).
  • - Create the virtual HMI Panel.
  • - Assign an electrical signal.
  • - Virtual Commissioning
  • - Connect a smart device to the actual PLC.
  • - Supports for the integrated PLC environment review functions.

Expected outcome

  • - Reduction of costs and time for production stabilization.
  • - Verification of expected abnormal scenarios to improve the PLC program quality.
  • - Removal of risks in installation. Reduced maintenance cost.
